New LC Connector from R&M for High Packing Density

New LC Connector from R&M for High Packing Density

R&M is launching a new variant of the LC fibre-optic connector onto the data centre cabling market. The LC-QR was designed to suit a particularly high concentration of network connections and simple operation. QR stands for QuickRelease.

Most conventional LCs are unlocked via a clip on the back of the plug. This mechanism restricts packing density in the patch panels. A gap must be maintained between the plugs or adapters so that the clip is accessible and to enable unlocking. The new LC-QR connector from R&M, on the other hand, has a push-pull mechanism integrated into the housing. It can be operated via the rear and the user no longer has to grasp right to the front of the connector.
050-6343

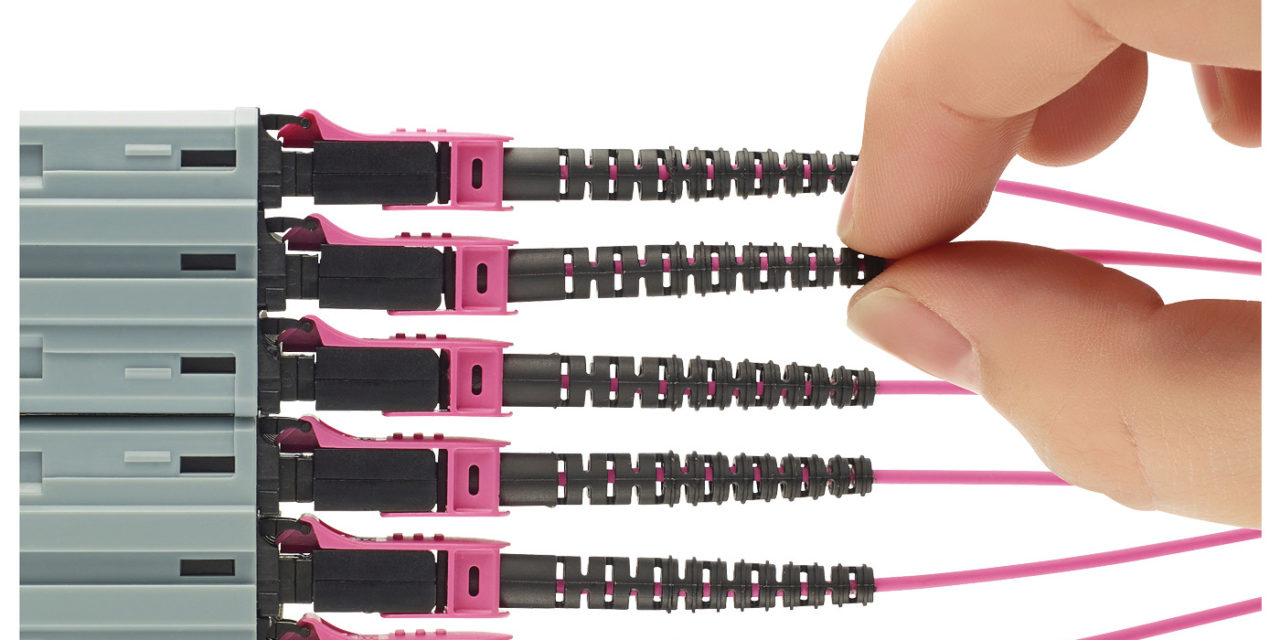

Furthermore the LC-QR can be locked and unlocked via the boot, and connectors and adapters can be packed more closely. As a result, R&M has further developed the patch panels as well. New Ultra High Density (UHD) platforms are coming onto the market at the same time as the LC-QR. 360 ports for 720 fibres can be accommodated on three height units (3 U). As a uniboot version for 1.4 mm or 2.0 mm cables, the new plug is the perfect solution for the reliable handling of this huge quantity of cables. Furthermore, R&M will soon be able to provide appropriate versions for configuration with figure “8” and figure “0” cables.
R&M’s LC-QR can also be converted from A-B to A-A in just a few simple steps. This makes ordering and storage easier. You only need one type to enable configuration of both types of wiring on site. R&M has designed the LC-QR so that the polarity can be changed on-site, even with tuned plugs and the APC version.
